A mechanical device with some structural give or flexibility is referred to as a compliant mechanism. Due to this, it may flex or deform instead of failing or breaking under pressure. In robotics and structural engineering, compliant mechanisms are frequently employed to decrease impact, absorb energy, or create more flexible and adaptive structures.

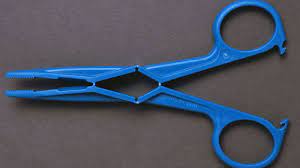

Compliant plier mechanism
Spring, elastomer, and flexible joints are only a few examples of the various kinds of compliant mechanisms. Metals, polymers, and composite materials can all be used to create these mechanisms. The particular design of a compliant mechanism will rely on the application in question and the amount of compliance or flexibility necessary.
For several reasons, compliant mechanisms are the most intriguing. One reason is that they can offer a more flexible and adjustable structure, which can be advantageous in a number of applications. In robotics, for instance, compliant mechanisms may let a robot move more smoothly and adapt to its surroundings, which can be advantageous for tasks like gripping things or negotiating rough terrain. By enabling structures to flex and deform under stress rather than snapping or collapsing, compliant systems can assist in strengthening the resilience of buildings and bridges to earthquakes and other natural catastrophes.
Injection mold created compliant scissors
Compliant mechanisms are fascinating for another reason – they may lessen impact and aid in absorbing energy. This can be helpful in a number of applications, such as shock absorbers to lessen vehicle vibrations or medical devices to lessen the impact on joints during movement.
The ability to develop and construct compliant mechanisms using various materials and methods also enables customization for particular applications and a wide range of design options. For engineers and academics, this makes them a fascinating subject for research and development.
There are a variety of different types of compliant mechanisms that can be used in robotics, including:
- Springs: In robotics, compliant elements like springs are frequently employed to offer a flexible component that may absorb energy and help the robot adapt to its surroundings. They may be included in a robotic arm or leg as a component of a joint to enable the robot to move more fluidly and naturally.

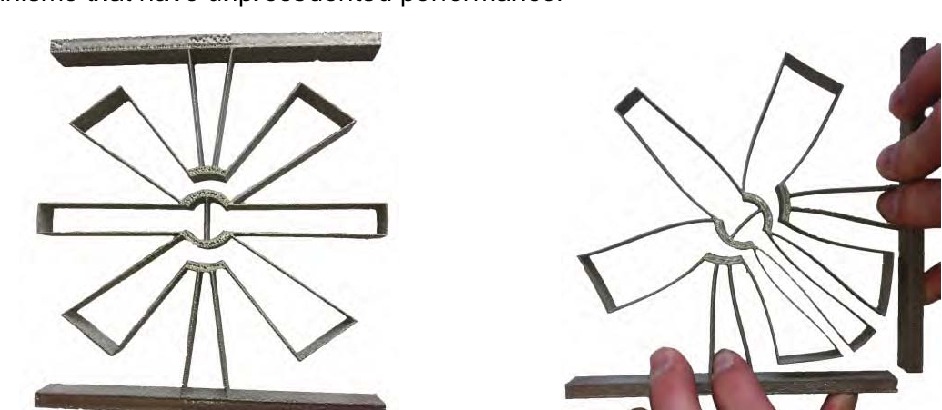

A manual robotic forearm based on compliant designs. It can grab and hold objects as well as a human hand.
- Hydraulic actuators: These devices are another class of flexible mechanisms that may be applied to robotics. They are made up of a pressurized fluid-filled piston or cylinder that may move and produce force. Since hydraulic actuators can be manufactured to be extremely strong and accurate while yet having a certain level of compliance since they are cylinders filled with fluid, they are frequently employed in robotics.
- Pneumatic actuators: Pneumatic actuators are similar to hydraulic actuators, except instead of using fluid to create movement, they employ pressured gas. Because the gas is compressible, they have a certain level of compliance in addition to being incredibly quick and responsive.
- Flexible joint: Another compliant mechanism that may be utilized in robotics is a flexible joint. The robot can adapt to its surroundings and absorb energy if they are constructed to enable a certain level of movement and deformation.

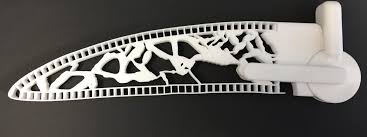

Optimized morphing wings – applications in aeronautics
There are a variety of different materials and structures that can be used as compliant mechanisms, including:
- Polymers: Polymers are a type of material distinguished by their flexibility and capacity to deform in the presence of outside pressures. They can be utilized in a range of applications as compliant mechanisms, such as structural elements in buildings or bridges, actuators in microelectromechanical systems (MEMS), or parts in medical equipment.
- Metals: A few metals, including copper and aluminum, are somewhat flexible and can be utilized as compliant mechanisms in some situations. For instance, they can be utilized as structural components in buildings or bridges to accommodate movement brought on by changes in temperature or other outside factors.
3D-printed compliant Titanium primer – used for aerospace applications
- Composites: Composites are substances that combine two or more different types of materials, such as fibers and a matrix. They can be created to have certain mechanical qualities, like compliance, and employed as compliant mechanisms in a range of applications, such as structural parts in buildings or bridges or as actuators in microelectromechanical systems (MEMS).
It’s worth remembering that complying mechanisms aren’t always the greatest option. For instance, in some situations, the compliant mechanism’s flexibility may be undesired, and a more rigid construction may be needed. When determining whether to employ a compliance mechanism or a regular mechanism, it’s crucial to take the application’s unique requirements into account.
Future advancements in compliant mechanisms are anticipated to include the incorporation of these mechanisms into a larger variety of applications in addition to the creation of novel materials and methods. Compliant mechanisms, for instance, may be utilized to create exoskeletons and improved prostheses that would enable people to move more freely and lessen the strain on their joints. As a result, robots may move and adapt to their surroundings more effectively and spontaneously. They could also be employed in the construction of more sophisticated robotics systems.
Research and development to enhance the performance and capacities of compliant mechanisms will certainly continue in the future. This might involve the production of novel materials and fabrication processes that enable the construction of more complex and advanced compliant mechanisms. For instance, scientists are now developing new composite materials that can adapt their stiffness or structure in response to diverse stimuli like pressure or temperature. With the help of these materials, more sophisticated compliant mechanisms that can adapt to their surroundings and carry out a variety of functions might potentially be made.
For more information and the plans required to make your own mechanisms, visit: https://www.compliantmechanisms.byu.edu/about-compliant-mechanisms
~ By Rudransh Dubey, Second Year Department of Mechanical Engineering
